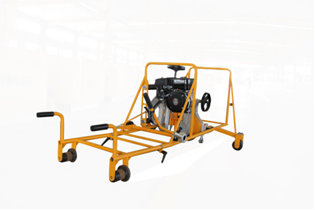

產品特點： Product characteristics:
1、整機操作舒適，一人可輕松操作，操縱手把位置可調，可適用不同打磨位置。
Comfortable operation, one person canoperate easily, adjustable handlebar, applicable to different grindingpositions.
2、擺角范圍大，調節方便；整機可以發動機軸向旋轉8°角，提高打磨效率。
Large pendulum range, convenient adjustment,the whole machine can rotate 8° axially to improve the grinding efficiency.
3、插接式機架，上下道輕便，跨軌距離可調，可適用不同厚度鐵路肥邊。
Plug in frame, light up and down track,cross rail distance adjustable, applicable for railway trimming with differentthickness.
4、整機關鍵部位采用優質鋁合金，在保證整體機具強度的情況下，減少了整機重量，使工人操作更加輕便。
High-quality aluminum alloy key parts,reducing weight with more convenient operation while ensuring the strength ofthe whole machine.
5、雙V帶傳動，全包式防護，使傳動更加有力可靠。
DoubleV-belt driven, full protection, drive more powerful and reliable.
規格型號Model | NCM-4.8 |
配套動力 Mating engine | EX21 |
功率（kw/r/min）power | 4.8（5.3）/3600 |
砂輪有效行程 Effective stroke of grinding wheel | 75 |
砂輪雙向最大擺角（度）Two-way maximum pendulum Angle of the grinding wheel (degree) | 40 |
工作質量?weight | 96 |
包裝尺寸package size | 1690*1300*980 |
